We'll do this by providing an abstraction interface, PlotType, which externalizes the way the plotting is done. That is, the code that does the drawing of the point is moved outside of the SimpleScatterPlot class, and the PlotType interface provides a standard interface which different classes may implement in different ways to plot a point differently.

package javaBeans;

import java.awt.Color;
import java.awt.Graphics;

/**
*   PlotType interface.
*
*   A class that implements this interface implements a specific
*   way of drawing a point into Graphics g at position (x, y),
*   together with a label, if desired/supported.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public interface PlotType
{
    /**
    *   Draws a "spot" in Graphics g, at point (x,y), with label.
    */
    public void drawSpot(Graphics g, int x, int y, String label);

    /**
    *   Gets the current color that will be used to draw spots.
    */
    public Color getColor();

    /**
    *   Set the color that will be used to draw spots.
    */
    public void setColor(Color color);

    /**
    *   Gets the PlotType implementation's display name.
    */
    public String getDisplayName();
}

package javaBeans;

import java.awt.Color;
import java.awt.Graphics;

/**
*   An abstract class that implements PlotType, to simplify creation
*   of PlotType implementations.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public abstract class SimplePlotType implements PlotType
{
    /**
    *   Draws a "spot" in Graphics g, at point (x,y), with label.
    */
    public abstract void drawSpot(Graphics g, int x, int y, String label);

    /**
    *   Gets the current color that will be used to draw spots.
    */
    public Color getColor()
    {
        return m_color;
    }

    /**
    *   Set the color that will be used to draw spots.
    */
    public void setColor(Color color)
    {
        m_color = color;
    }

    //// Private Data ////
    private Color   m_color = Color.green;  // The default color
}

package javaBeans;

import java.awt.Graphics;

/**

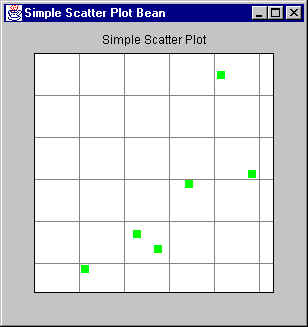

*   Class that implements the PlotType interface to draw a
*   simple unadorned box of the specified color, and no label.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class PTBox extends SimplePlotType
{
    /**
    *   Draws a "spot" in Graphics g, at point (x,y), with label.
    */
    public void drawSpot(Graphics g, int x, int y, String label)
    {
        g.setColor(getColor());
        g.fillRect(x-4, y-4, 8, 8);
    }

    /**
    *   Gets the PlotType implementation's display name.
    */
    public String getDisplayName()
    {
        return "Box";
    }
}

package javaBeans;

import java.awt.Color;
import java.awt.Graphics;

/**

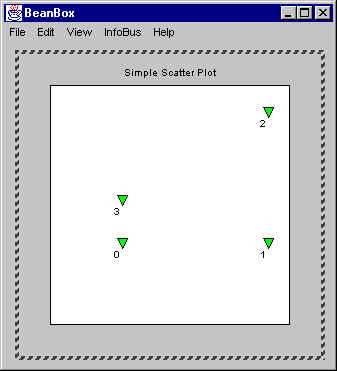

*   Class that implements the PlotType interface to draw a
*   triangle of the specified color, with a black surround,
*   and (if requested) a label.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class PTTriangle extends SimplePlotType
{
    /**
    *   Draws a "spot" in Graphics g, at point (x,y), with label.
    */
    public void drawSpot(Graphics g, int x, int y, String label)
    {
        int xPoints[] = { x-5, x, x+5, x-5 };
        int yPoints[] = { y, y+10, y, y };

        g.setColor(getColor());
        g.fillPolygon(xPoints, yPoints, 4);
        g.setColor(Color.black);
        g.drawPolygon(xPoints, yPoints, 4);

        if (label != null)
        {
            g.drawString(label, x-8, y+20);
        }
    }

    /**
    *   Gets the PlotType implementation's display name.
    */
    public String getDisplayName()
    {
        return "Triangle";
    }
}

package javaBeans;

import java.awt.Color;
import java.awt.Graphics;

/**

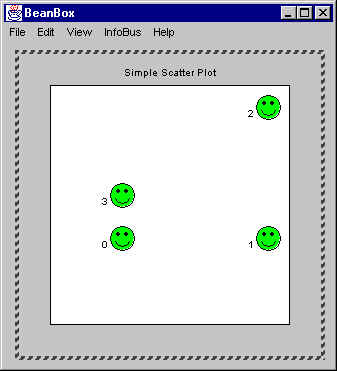

*   Class that implements the PlotType interface to draw a
*   "happy face" of the specified color, and a label.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class PTHappy extends SimplePlotType
{
    /**
    *   Draws a "spot" in Graphics g, at point (x,y), with label.
    */
    public void drawSpot(Graphics g, int x, int y, String label)
    {
        g.setColor(getColor());
        g.fillOval(x - 12, y - 12, 24, 24);
        g.setColor(Color.black);
        g.drawOval(x-12, y-12, 24, 24);
        g.drawArc(x-8, y-8, 16, 16, 200, 140);
        g.fillOval(x-6, y-6, 4, 4);
        g.fillOval(x+2, y-6, 4, 4);

        if (label != null)
        {
            g.drawString(label, x-20, y+10);
        }
    }

    /**
    *   Gets the PlotType implementation's display name.
    */
    public String getDisplayName()
    {
        return "Happy Face";
    }
}

package javaBeans;

import java.awt.Canvas;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.Graphics;
import java.awt.Point;
import java.awt.Rectangle;

/**

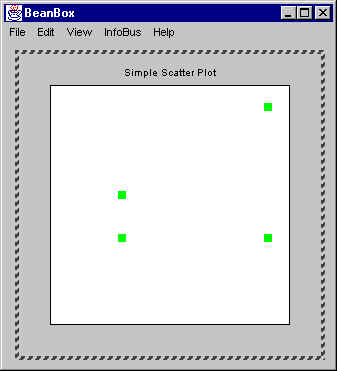

 *  A class that implements a simple scatter plot Java Bean.
 *
 *  @author Bryan J. Higgs, 6 April 2000
 */
public class SimpleScatterPlot extends Canvas
{
    /**
    *   Constructor
    */
    public SimpleScatterPlot()
    {
        m_title = "Simple Scatter Plot";
        setBackground(Color.lightGray);
    }

    //// Set/get properties ////

    /**

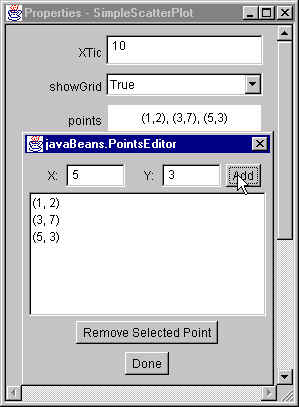

    *   Gets the array of points being displayed.
    */
    public Point[] getPoints()
    {
        return m_points;
    }

    /**
    *   Sets the array of points to be displayed.
    *   Causes the display to be automatically refreshed.
    */
    public void setPoints(Point[] points)
    {
        m_points = points;
        m_autoRangingDone = false;
        repaint();
    }

    /**
    *   Gets the i-th (0-based) point.
    *   @return the Point
    *   @exception ArrayIndexOutOfBoundsException if i is out of range
    */
    public Point getPoints(int i)
    {
        return m_points[i];
    }

    /**
    *   Sets the i-th (0-based) point.
    *   @param i the index at which to set the Point
    *   @param p the Point to set at that index; if null, the point
    *            no action is taken (to prevent creating a sparse array)
    */
    public void setPoints(int i, Point p)
    {
        if (p != null)
        {
            m_points[i] = p;

            m_autoRangingDone = false;
            repaint();
        }
    }

    /*
    *   Gets the number of points currently being displayed.
    */
    public int getPointCount()
    {
        return m_points.length;
    }

    /**
    *   Gets the PlotType implementation.
    */
    public PlotType getPlotType()
    {
        return m_plotType;
    }

    /**
    *   Sets the PlotType implementation.
    */
    public void setPlotType(PlotType ps)
    {
        m_plotType = ps;
        repaint();
    }

    /**
    *   Gets the scatter plot title.
    */
    public String getTitle()
    {
        return m_title;
    }

    /**
    *   Sets the scatter plot title.
    *   Refreshes the display.
    */
    public void setTitle(String title)
    {
        m_title = title;
        repaint();
    }

    /**
    *   Gets the current title text color.
    */
    public Color getTitleColor()
    {
        return m_titleColor;
    }

    /**
    *   Sets the title text color.
    *   Refreshes the display.
    */
    public void setTitleColor(Color color)
    {
        m_titleColor = color;
        repaint();
    }

    /**
    *   Gets the current plot background color.
    */
    public Color getPlotBackColor()
    {
        return m_plotBackColor;
    }

    /**
    *   Sets the plot background color.
    *   Refreshes the display.
    */
    public void setPlotBackColor(Color color)
    {
        m_plotBackColor = color;
        repaint();
    }

    /**
    *   Gets the current point display color.
    */
    public Color getPointColor()
    {
        Color color = DEFAULT_POINT_COLOR;  // Default if no PlotType
        if (m_plotType != null)
            color = m_plotType.getColor();
        return color;
    }

    /**
    *   Sets the point display color.
    */
    public void setPointColor(Color color)
    {
        if (m_plotType != null)
        {
            m_plotType.setColor(color);
            repaint();
        }
    }

    /**
    *   Gets the current grid color.
    */
    public Color getGridColor()
    {
        return m_gridColor;
    }

    /**
    *   Sets the grid color.
    *   Refreshes the display.
    */
    public void setGridColor(Color color)
    {
        m_gridColor = color;
        repaint();
    }

    /**
    *   Gets the current plot bounds.
    */
    public PlotBounds getPlotBounds()
    {
        return m_bounds;
    }

    /**

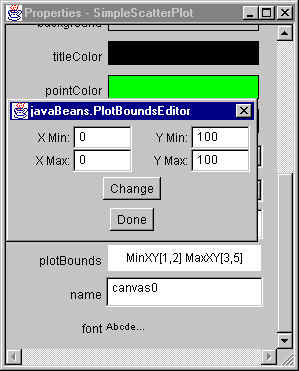

    *   Sets the plot bounds.
    *   Refreshes the display.
    */
    public void setPlotBounds(PlotBounds bounds)
    {
        m_bounds = bounds;
        m_autoRangingDone = false;
        repaint();
    }

    /**
    *   Gets the current grid tic X value.
    */
    public int getXTic()
    {
        return m_xTic;
    }

    /**
    *   Sets the the grid tic X value
    *   Refreshes the display.
    */
    public void setXTic(int xTic)
    {
        m_xTic = xTic;
        m_autoRangingDone = false;
        repaint();
    }

    /**
    *   Gets the current grid tic Y value.
    */
    public int getYTic()
    {
        return m_yTic;
    }

    /**
    *   Sets the the grid tic Y value
    *   Refreshes the display.
    */
    public void setYTic(int yTic)
    {
        m_yTic = yTic;
        m_autoRangingDone = false;
        repaint();
    }

    /**
    *   Gets whether autoranging is turned on for the x direction.
    */
    public boolean isAutoRangeX()
    {
        return m_autoRangeX;
    }

    /**
    *   Sets autoranging on or off for the x direction.
    *   Refreshes the display.
    */
    public void setAutoRangeX(boolean autoRangeX)
    {
        m_autoRangeX = autoRangeX;
        m_autoRangingDone = false;
        repaint();
    }

    /**
    *   Gets whether autoranging is turned on for the y direction.
    */
    public boolean isAutoRangeY()
    {
        return m_autoRangeY;
    }

    /**
    *   Sets autoranging on or off for the y direction.
    *   Refreshes the display.
    */
    public void setAutoRangeY(boolean autoRangeY)
    {
        m_autoRangeY = autoRangeY;
        m_autoRangingDone = false;
        repaint();
    }

    /**
    *   Gets whether the gird should be shown.
    */
    public boolean isShowGrid()
    {
        return m_showGrid;
    }

    /**
    *   Sets the display of the grid on or off.
    *   Refreshes the display.
    */
    public void setShowGrid(boolean showGrid)
    {
        m_showGrid = showGrid;
        repaint();
    }

    /**
    *   Sets the preferred size for the scatter plot canvas.
    */
    public Dimension getPreferredSize()
    {
        if (m_preferredSize == null)
            m_preferredSize = new Dimension(300, 300);
        return m_preferredSize;
    }

    /**
    *   Sets the preferred size for the scatter plot canvas.
    *   Refreshes the display.
    */
    public void setPreferredSize(Dimension d)
    {
        m_preferredSize = d;
        repaint();
    }

    /**
    *   Paints the scatter plot canvas.
    */
    public void paint(Graphics g)
    {
        // Get information necessary to paint
        Dimension size = getSize();
        int width = size.width;
        int height = size.height;

        paintTitle(g, width, height);

        autoRange();

        // Create a new clipped area to draw the actual plot into.
        Graphics area =
                g.create((int)((width/10.0)+0.5),
                            (int)((height/10.0)+0.5),
                            (int)((width * 8.0 / 10.0) + 0.5),
                            (int)((height * 8.0 / 10.0) + 0.5)
                        );

        plotPoints(area);

        if (isShowGrid())
            paintGrid(area);

        // Draw rectangle around the plot
        Rectangle rect = area.getClipBounds();
        area.setColor(Color.black);
        area.drawRect(0, 0,  rect.width-1, rect.height-1);
    }

    //// Protected methods ////

    /**
    *   Paints the title text.
    */
    protected void paintTitle(Graphics g, int width, int height)
    {
        // Baseline at 7% from top
        int baseline = height * 7 / 100;
        int titleWidth = getFontMetrics(getFont()).stringWidth(m_title);
        int xStart = (width - titleWidth) / 2;

        if (xStart < 0)
            xStart = 0;

        g.setColor(m_titleColor);
        g.drawString(m_title, xStart, baseline);
    }

    /**
    *   Determines and sets the bounds from the set of points being displayed.
    */
    protected void autoRange()
    {
        // If there are points, and we're autoranging, do the work...
        // (If autoranging has already been done, don't bother doing it again.)
        if (getPointCount() > 0 &&
            !m_autoRangingDone && (m_autoRangeX || m_autoRangeY))
        {
            Point point = m_points[0];
            if (m_autoRangeX)
            {
                m_bounds.setXMin(point.x);
                m_bounds.setXMax(point.x);
            }
            if (m_autoRangeY)
            {
                m_bounds.setYMin(point.y);
                m_bounds.setYMax(point.y);
            }
            for (int i = 1; i < getPointCount(); i++)
            {
                point = m_points[i];
                if (m_autoRangeX)
                {
                    if (point.x < m_bounds.getXMin())
                        m_bounds.setXMin(point.x);
                    if (point.x > m_bounds.getXMax())
                        m_bounds.setXMax(point.x);
                }
                if (m_autoRangeY)
                {
                    if (point.y < m_bounds.getYMin())
                        m_bounds.setYMin(point.y);
                    if (point.y > m_bounds.getYMax())
                        m_bounds.setYMax(point.y);
                }
            }

            m_autoRangingDone = true;   // Done for this pass
        }
    }

    /**
    *   Plots the points on the scatter plot.
    */
    protected void plotPoints(Graphics g)
    {
        Rectangle rect = g.getClipBounds();

        // Set window for graphics
        int height = rect.height;
        int width = rect.width;

        // Fill background
        g.setColor(m_plotBackColor);
        g.fillRect(0, 0, width-1, height-1);

        int pointCount = getPointCount();
        int barwidth = (pointCount > 0) ? (width / pointCount): 0;

        Point point;
        for (int i = 0; i < pointCount; i++)
        {
            point = m_points[i];

            // Figure out where the point goes.
            // If autoscaling is on along one axis, we extend
            // the scale by 10% so points don't end up
            // being cut off by the graph edges.
            double dxExpand = m_autoRangeX ? 1.1 : 1.0;
            int x = (int)(width * point.x / (m_bounds.getXMax() * dxExpand));

            double dyExpand = m_autoRangeY ? 1.1 : 1.0;
            int y = height -
                  (int)(height * point.y / (m_bounds.getYMax() * dyExpand));

            // If the plotType is set, use it.
            if (m_plotType != null)
            {
                // Create a "title" for the point
                String ss = m_numberPoint ? Integer.toString(i) : null;
                // Delegate the drawing to the plotType implementation
                m_plotType.drawSpot(g, x, y, ss);
            }
            else
            {
                // Otherwise just draw bars
                g.setColor(getPointColor());
                g.fillRect(i * barwidth, height - y, barwidth, y);
            }
        }
    }

    /**
    *   Paints the scatter plot grid.
    */
    protected void paintGrid(Graphics g)
    {
        Rectangle rect = g.getClipBounds();
        if (!m_showGrid)
            return;

        // Set window for graphics
        int height = rect.height;
        int width = rect.width;

        if (m_xTic == 0)
            m_xTic = ((m_bounds.getXMax() - m_bounds.getXMin()) / 5);
        if (m_xTic == 0)
            m_xTic = 10;

        if (m_yTic == 0)
            m_yTic = ((m_bounds.getYMax() - m_bounds.getYMin()) / 5);
        if (m_yTic == 0)
            m_yTic = 10;

        g.setColor(m_gridColor);

        // Draw x grid lines
        int xRange = m_bounds.getXMax() - m_bounds.getXMin();
        if (xRange == 0)
            xRange = 100;
        double xPixPerUnit = width/xRange;

        for (int xval = 0; xval <= m_bounds.getXMax(); xval += m_xTic)
        {
            int xpos = (int)(xval * xPixPerUnit);
            g.drawLine(xpos, 0, xpos, height);
        }

        // Draw y grid lines
        int yRange = m_bounds.getYMax() - m_bounds.getYMin();
        if (yRange == 0)
            yRange = 100;
        double yPixPerUnit = height/yRange;

        for (int yval = 0; yval <= m_bounds.getYMax(); yval += m_yTic)
        {
            int ypos = (int)(yval * yPixPerUnit);
            g.drawLine(0, ypos, width, ypos);
        }
    }

    //// Private data ////

    private String      m_title;
    private Point[]     m_points = new Point[0];
    private PlotBounds  m_bounds = new PlotBounds(0, 0, 0, 0);
    private boolean     m_showGrid = true;
    private boolean     m_autoRangeY = true;
    private boolean     m_autoRangeX = true;

    private Color       m_titleColor = Color.black;
    private Color       m_plotBackColor = Color.white;
    private Color       m_gridColor = Color.gray;
    private PlotType    m_plotType = new PTBox();// Default plotType
    private boolean     m_numberPoint = true;

    private final Color DEFAULT_POINT_COLOR = Color.green;

    private int         m_xTic = 0;
    private int         m_yTic = 0;

    private Dimension   m_preferredSize;
    private boolean     m_autoRangingDone = false;
}

package javaBeans;

import java.beans.PropertyChangeListener;
import java.beans.PropertyEditorSupport;

/**

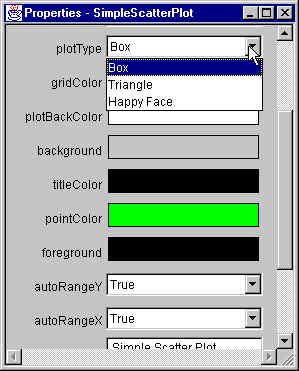

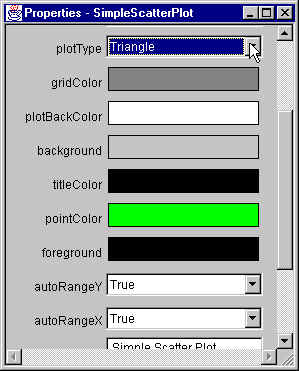

*   PlotTypeEditor -- a Java Beans property editor for PlotType.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class PlotTypeEditor extends PropertyEditorSupport
{
    /**
    *   Returns valid tag names for the set of PlotType implementations.
    *   (It obtains the tag name as the displayName for each of the
    *   implementations.)
    */
    public String[] getTags()
    {
        String[] typeChoicesText = new String[m_typeChoices.length];
        for (int i = 0; i < typeChoicesText.length; i++)
            typeChoicesText[i] = m_typeChoices[i].getDisplayName();
        return typeChoicesText;
    }

    /**
    *   Given the name of a PlotType, set the value of the
    *   object we're editing, which fires a property change event
    *   at the associated bean.
    */
    public void setAsText(String name)
    {
        for (int i = 0; i < m_typeChoices.length; i++)
        {
            if ( name.equals(m_typeChoices[i].getDisplayName()) )
            {
                setValue(m_currentPlotType = m_typeChoices[i]);
                                    // Note: This fires a property change
                break;
            }
        }
    }

    /**
    *   Get the name of the PlotType being edited
    */
    public String getAsText()
    {
        return m_currentPlotType.getDisplayName();
    }

    //// Private data ////

    /**
    *   The currently available set of PlotType implementations.
    */
    private static PlotType[] m_typeChoices =
    {
        new PTBox(),
        new PTTriangle(),
        new PTHappy()
    };

    /*
    *   The current PlotType implementation in use.
    */
    private PlotType m_currentPlotType = m_typeChoices[0];
}

package javaBeans;

import java.awt.Point;

import java.beans.BeanDescriptor;
import java.beans.PropertyEditorManager;
import java.beans.SimpleBeanInfo;

/**
*   BeanInfo class for SimpleScatterPlot.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class SimpleScatterPlotBeanInfo extends SimpleBeanInfo
{
    /**
    *   Gets the BeanDescriptor for the SimpleScatterPlot Bean.
    */
    public BeanDescriptor getBeanDescriptor()
    {
        // Register some property editors
        PropertyEditorManager.registerEditor(PlotType.class,
                                             PlotTypeEditor.class);

        // Create bean descriptor
        BeanDescriptor desc = new BeanDescriptor(SimpleScatterPlot.class);
        desc.setShortDescription("Simple Scatter Plot");
        desc.setDisplayName("SimpleScatterPlot");

        return desc;
    }
}

package javaBeans;

import java.awt.Color;
import java.awt.Component;
import java.awt.FontMetrics;
import java.awt.Graphics;
import java.awt.Rectangle;

import java.beans.PropertyEditorSupport;

/**
*   PlotBoundsEditor -- a Java Beans property editor for PlotBounds.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class PlotBoundsEditor extends PropertyEditorSupport
{
    /**
    *   Returns true, to indicate that we have a custom editor.
    */
    public boolean supportsCustomEditor()
    {
        return true;
    }

    /**
    *   Returns the custom editor for this type
    */
    public Component getCustomEditor()
    {
        return new PlotBoundsEditorPanel(this);
    }

    /**
    *   Returns true, indicating that we wish to control
    *   how this property is displayed in the properties sheet.
    */
    public boolean isPaintable()
    {
        return true;
    }

    /**
    *   Does the display of the entry in the properties sheet.
    */
    public void paintValue(Graphics g, Rectangle box)
    {
        PlotBounds bounds = (PlotBounds) getValue();
        String s = "MinXY[" + bounds.getXMin() + "," +
                              bounds.getYMin() + "] " +
                   "MaxXY[" + bounds.getXMax() + "," +
                              bounds.getYMax() + "]";

        g.setColor(Color.white);
        g.fillRect(box.x, box.y, box.width, box.height);
        g.setColor(Color.black);
        FontMetrics fm = g.getFontMetrics();
        int width = fm.stringWidth(s);
        int x = box.x;
        if (width < box.width)
            x += (box.width - width)/2;
        int y = box.y + (box.height - fm.getHeight())/2
                    + fm.getAscent();
        g.drawString(s, x, y);
    }

    /**
    *   Return false, indicating that there is no text equivalent.
    */
    public String getAsText()
    {
        return null;
    }
}

package javaBeans;

import java.awt.BorderLayout;
import java.awt.Button;
import java.awt.GridLayout;
import java.awt.Label;
import java.awt.Panel;
import java.awt.TextField;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.FocusAdapter;
import java.awt.event.FocusEvent;

import java.beans.PropertyEditorSupport;

/**
*   PlotBoundsEditorPanel -- the custom editor GUI for
*   the PlotBoundsEditor property editor.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class PlotBoundsEditorPanel extends Panel
{
    /**
    *   Constructor
    */
    public PlotBoundsEditorPanel(PropertyEditorSupport ed)
    {
        m_editor = ed;
        m_bounds = (PlotBounds)m_editor.getValue();

        setLayout( new BorderLayout() );
        add( createMinMaxPanel(), BorderLayout.CENTER );
        add( createChangePanel(), BorderLayout.SOUTH );
    }

    /**
    *   Creates a panel to contain the labels and text fields
    *   for user input.
    */
    private Panel createMinMaxPanel()
    {
        Panel p = new Panel( new GridLayout(2, 2) );
        // Lay out the panel
        p.add( new Label("X Min: ", Label.RIGHT) );
        p.add( m_xMin );
        p.add( new Label("Y Min: ", Label.RIGHT) );
        p.add( m_yMin );
        p.add( new Label("X Max: ", Label.RIGHT) );
        p.add( m_xMax );
        p.add( new Label("Y Max: ", Label.RIGHT) );
        p.add( m_yMax );
        // Set the values into the fields
        m_xMin.setValue(m_bounds.getXMin());
        m_yMin.setValue(m_bounds.getYMin());
        m_xMax.setValue(m_bounds.getXMax());
        m_yMax.setValue(m_bounds.getYMax());

        // Add a focus listener to each input field
        // so that we can cause the Change button to be
        // enabled or disabled, as appropriate.
        BoundsChangeChecker checker = new BoundsChangeChecker();
        m_xMin.addFocusListener(checker);
        m_xMin.addFocusListener(checker);
        m_yMin.addFocusListener(checker);
        m_xMax.addFocusListener(checker);
        m_yMax.addFocusListener(checker);

        return p;
    }

    /**
    *   Create a panel for the Change button
    */
    private Panel createChangePanel()
    {
        Panel p = new Panel();
        // Lay out the panel
        p.add( m_changeButton );
        // Set the button initially disabled
        // (it will only be enabled if we detect a change.)
        m_changeButton.setEnabled(false);

        // Add an action listener for when we push the button.
        m_changeButton.addActionListener( new ActionListener()
            {
                public void actionPerformed(ActionEvent ev)
                {
                    changeBounds();
                }
            }
        );
        return p;
    }

    /**
    *   Cause the bean's bounds to be changed
    */
    private void changeBounds()
    {
        // Set the new bounds value in the associated bean
        // via its property editor.
        m_editor.setValue(m_bounds);
    }

    /**
    *   Inner class shared between the input fields as a
    *   focus listener.
    */
    class BoundsChangeChecker extends FocusAdapter
    {
        public void focusLost(FocusEvent e)
        {
            // When leaving a field, test to see whether there
            // have been any changes in the bounds, as a result
            // of user input.
            PlotBounds bounds = new PlotBounds(m_xMin.getValue(),
                                               m_yMin.getValue(),
                                               m_xMax.getValue(),
                                               m_yMax.getValue()
                                              );
            // Set the button enabled or disabled, as appropriate.
            boolean changed = !bounds.equals(m_bounds);
            m_changeButton.setEnabled(changed);
            // If there was a change, capture the new bounds
            if (changed)
                m_bounds = bounds;
        }
    }

    //// Private Data ////
    private PropertyEditorSupport   m_editor;   // The associated editor

    private PlotBounds  m_bounds;
    private IntBox      m_xMin = new IntBox(5); // Integer textfield
    private IntBox      m_yMin = new IntBox(5);
    private IntBox      m_xMax = new IntBox(5);
    private IntBox      m_yMax = new IntBox(5);
    private Button      m_changeButton = new Button("Change");
}

package javaBeans;

import java.awt.TextField;
import java.awt.event.KeyEvent;

import java.beans.PropertyChangeListener;
import java.beans.PropertyChangeSupport;
import java.beans.VetoableChangeListener;
import java.beans.VetoableChangeSupport;
import java.beans.PropertyVetoException;

/**
*   An IntBox Bean is a TextField that only accepts
*   positive or negative integers.
*
*   @author Bryan J. Higgs, 8 April, 2000
*/
public class IntBox extends TextField
{
    /**
    *   Default constructor.
    */
    public IntBox()
    {
        // Must enable key events on this component
        enableEvents(java.awt.AWTEvent.KEY_EVENT_MASK);
    }

    public IntBox(int columns)
    {
        super(columns);
        // Must enable key events on this component
        enableEvents(java.awt.AWTEvent.KEY_EVENT_MASK);
    }

    /**
    *   Allow other objects to register interest in my bound properties
    */
    public void addPropertyChangeListener(PropertyChangeListener listener)
    {
        m_pcs.addPropertyChangeListener(listener);
    }

    /**
    *   Allow other objects to remove their interest in my bound properties
    */
    public void removePropertyChangeListener(PropertyChangeListener listener)
    {
        m_pcs.removePropertyChangeListener(listener);
    }

    /**
    *   Allow other objects to register interest in my constrained properties
    */
    public void addVetoableChangeListener(VetoableChangeListener listener)
    {
        m_vcs.addVetoableChangeListener(listener);
    }

    /**
    *   Allow other objects to remove their interest in my bound properties
    */
    public void removeVetoableChangeListener(VetoableChangeListener listener)
    {
        m_vcs.removeVetoableChangeListener(listener);
    }

    /**
    *   Return the integer value of this object.
    *   (It's zero if we can't parse it.)
    */
    public int getValue()
    {
        try
        {
            int i = Integer.parseInt(getText());
            return i;
        }
        catch (NumberFormatException ex) {
            return 0;
        }
    }

    /**
    *   Set new value
    */
    public void setValue(int newValue)
    {
        int oldValue = m_prevValue;

        try
        {
            Integer oldObject = new Integer(oldValue);
            Integer newObject = new Integer(newValue);

            // This call sends a vetoable property change event
            m_vcs.fireVetoableChange("value", oldObject, newObject);

            // If we get here, none of the VetoableChangeListeners vetoed it.

            // This call sends a property change event.
            m_pcs.firePropertyChange("value", oldObject, newObject);

            // Set the new value and show it in the text field.
            m_prevValue = newValue;
            setText(Integer.toString(newValue));
        }
        catch (PropertyVetoException ex)
        {
            // It was vetoed by someone, so reset to previous value.
            setText(Integer.toString(oldValue));
        }
    }

    /**
    *   Intercept key events so we can discard non-numeric and
    *   non-special characters. (For example, we don't allow any
    *   of the alphabetic characters, punctuation, etc.)
    */
    public void processKeyEvent(KeyEvent event)
    {
        int id = event.getID();         // Get the event type
        int c = event.getKeyCode();     // and the key code
        if (id == KeyEvent.KEY_TYPED)   // KEY_TYPED doesn't have a code
            c = (int)event.getKeyChar();// So get the character instead

        // Only these characters receive normal processing.
        if (Character.isDigit((char)c) ||
            c == '-' || c == '+' ||         // Allow sign characters
            c == KeyEvent.VK_DELETE ||
            c == KeyEvent.VK_BACK_SPACE ||
            c == KeyEvent.VK_LEFT ||
            c == KeyEvent.VK_RIGHT ||
            c == KeyEvent.VK_TAB ||
            c == KeyEvent.VK_ENTER
           )
        {
            if (id == KeyEvent.KEY_PRESSED &&   // Only do it once!
                (c == KeyEvent.VK_ENTER || c == KeyEvent.VK_TAB)
               )
            {
                setValue(getValue());
            }

            // Allow normal processing
            super.processKeyEvent(event);
            return;
        }

        // Discard all other characters
        event.consume();
    }

    //// Private Data ////

    // The previous value of the IntBox.
    private int m_prevValue = 0;

    // Delegate property change operations to this object
    private PropertyChangeSupport m_pcs =
                        new PropertyChangeSupport(this);
    // Delegate vetoable property change operations to this object
    private VetoableChangeSupport m_vcs =
                        new VetoableChangeSupport(this);
}

package javaBeans;

import java.awt.Point;

import java.beans.BeanDescriptor;
import java.beans.PropertyEditorManager;
import java.beans.SimpleBeanInfo;

/**
*   BeanInfo class for SimpleScatterPlot.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class SimpleScatterPlotBeanInfo extends SimpleBeanInfo
{
    /**
    *   Gets the BeanDescriptor for the SimpleScatterPlot Bean.
    */
    public BeanDescriptor getBeanDescriptor()
    {
        // Register some property editors
        PropertyEditorManager.registerEditor(PlotType.class,
                                             PlotTypeEditor.class);

        PropertyEditorManager.registerEditor(PlotBounds.class,
                                             PlotBoundsEditor.class);


        // Create bean descriptor
        BeanDescriptor desc = new BeanDescriptor(SimpleScatterPlot.class);
        desc.setShortDescription("Simple Scatter Plot");
        desc.setDisplayName("SimpleScatterPlot");

        return desc;
    }
}

package javaBeans;

import java.awt.Color;
import java.awt.Component;
import java.awt.FontMetrics;
import java.awt.Graphics;
import java.awt.Point;
import java.awt.Rectangle;

import java.beans.PropertyEditorSupport;

/**
*   PointsEditor -- a Java Beans property editor for
*   indexed property type Point[].
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class PointsEditor extends PropertyEditorSupport
{
    /**
    *   We're creating a custom GUI for this editor.
    */
    public boolean supportsCustomEditor()
    {
        return true;
    }

    /**
    *   Returns the custom editor GUI panel for this editor.
    */
    public Component getCustomEditor()
    {
        return new PointsEditorPanel(this);
    }

    /**
    *   We're also painting the entry in the property sheet.
    */
    public boolean isPaintable()
    {
        return true;
    }

    /**
    *   This method does the painting of the entry in the sheet.
    */
    public void paintValue(Graphics g, Rectangle box)
    {
        Point[] points = (Point[]) getValue();
        String s = "";
        if (points == null || points.length == 0)
        {
            s = "{empty}";      // If there are no points
        }
        else
        {
            // If there are any points, show up to the first 3
            int count = 3;
            if (points.length < 3)
                count = points.length;
            for (int i = 0; i < count; i++)
            {
                if (i > 0)
                    s += ", ";
                s += "(" + points[i].x + "," +
                           points[i].y + ")";
            }
            if (points.length > 3)
                s += "...";
        }

        g.setColor(Color.white);
        g.fillRect(box.x, box.y, box.width, box.height);
        g.setColor(Color.black);
        FontMetrics fm = g.getFontMetrics();
        int width = fm.stringWidth(s);
        int x = box.x;
        if (width < box.width)
            x += (box.width - width)/2;
        int y = box.y + (box.height - fm.getHeight())/2
                    + fm.getAscent();
        g.drawString(s, x, y);
    }

    /**
    *   We don't have a text representation for this type.
    */
    public String getAsText()
    {
        return null;
    }
}

package javaBeans;

import java.awt.BorderLayout;
import java.awt.Button;
import java.awt.Label;
import java.awt.Panel;
import java.awt.Point;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;

import java.beans.PropertyEditorSupport;

/**

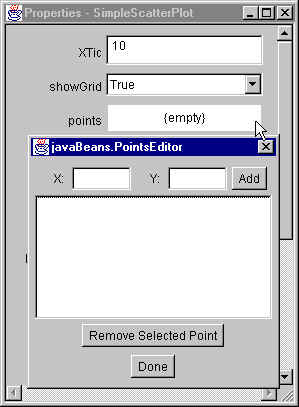

*   PointsEditorPanel -- the custom editor GUI for
*   the PointsEditor property editor.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class PointsEditorPanel extends Panel
{
    /**
    *   Constructor
    */
    public PointsEditorPanel(PropertyEditorSupport ed)
    {
        m_editor = ed;

        setLayout( new BorderLayout() );

        add( createAddPanel(), BorderLayout.NORTH );
        add( m_pointsList, BorderLayout.CENTER );
        add( createRemovePanel(), BorderLayout.SOUTH );

        m_pointsList.setPoints( (Point[])m_editor.getValue() );
    }

    /**
    *   Gets the points currently in the PointsList.
    */
    public Point[] getPoints()
    {
        Point[] pts = m_pointsList.getPoints();
        return pts;
    }

    /**
    *   Creates a panel that allows input of X,Y values for
    *   adding a new point to the array.
    */
    private Panel createAddPanel()
    {
        Panel p = new Panel();
        // Lay out the panel
        p.add( new Label("X: ", Label.RIGHT) );
        p.add( m_x );
        p.add( new Label("Y: ", Label.RIGHT) );
        p.add( m_y );
        p.add( m_addButton );

        // Make the button do the right thing
        m_addButton.addActionListener( new ActionListener()
            {
                public void actionPerformed(ActionEvent ev)
                {
                    addPoint();
                }
            }
        );
        return p;
    }

    /**
    *   Creates a panel that allows the user to remove a point
    *   from that points list.
    */
    private Panel createRemovePanel()
    {
        Panel p = new Panel();
        // Lay out the panel
        p.add( m_removeButton );

        // Make the button do the right thing
        m_removeButton.addActionListener( new ActionListener()
            {
                public void actionPerformed(ActionEvent ev)
                {
                    removePoint();
                }
            }
        );
        return p;
    }

    /**
    *   Adds a point to the points list and then to the editor's bean
    */
    private void addPoint()
    {
        // Construct a point from the specified X,Y values
        Point newPoint = new Point( m_x.getValue(), m_y.getValue() );
        // Add the new point to the points list.
        m_pointsList.add(newPoint);
        // Get the new set of points from the points list
        Point[] points = m_pointsList.getPoints();
        // Use it to replace the points array in the Bean
        m_editor.setValue(points);
    }

    private void removePoint()
    {
        // Get the selected Point index
        int selectedIndex = m_pointsList.getSelectedIndex();
        if (selectedIndex >= 0)
        {
            // Remove the point from the points list
            m_pointsList.remove(selectedIndex);
            // Get the new set of points from the points list
            Point[] points = m_pointsList.getPoints();
            // Use it to replace the points array in the Bean
            m_editor.setValue(points);
        }
    }

    //// Private Data ////
    private PropertyEditorSupport   m_editor;   // Associated editor

    private IntBox      m_x = new IntBox(5);    // Integer textfield
    private IntBox      m_y = new IntBox(5);
    private Button      m_addButton = new Button("Add");
    private Button      m_removeButton = new Button("Remove Selected Point");
    private PointsList  m_pointsList = new PointsList(8); // 8 items visible
}

package javaBeans;

import java.awt.List;
import java.awt.Point;

import java.util.Enumeration;
import java.util.Vector;

/**
*   PointsList -- a class that implements a List specifically
*   to contain Points.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class PointsList extends List
{
    /**
    *   Constructs a PointsList with a specified number of
    *   visible items.
    */
    public PointsList(int visibleItems)
    {
        super(visibleItems);
    }

    /**
    *   Gets the Point at the specified inded.
    *   @exception ArrayIndexOutOfBoundsException when the index
    *              is out of range.
    */
    public Point getPoint(int index)
    {
        Point p = (Point) m_points.elementAt(index);
        return p;
    }

    /**
    *   Gets the point that was selected, if any.
    */
    public Point getSelectedPoint()
    {
        Point ret = null;
        try
        {
            int index = getSelectedIndex();
            if (index != -1)
                ret = getPoint(index);
        }
        catch(ArrayIndexOutOfBoundsException ex)
        {
        }
        return ret;
    }

    /**
    *   Adds the specified point to the points list.
    */
    public void add(Point p)
    {
        String name = getAsText(p);
        add(name);
        m_points.addElement(p);
    }

    /**
    *   Adds the specified set of points to the points list.
    */
    public void add(Point[] p)
    {
        if (p != null)
        {
            for (int i = 0; i < p.length; i++)
            {
                add(p[i]);
            }
        }
    }

    /**
    *   Gets the current set of points in the list.
    */
    public Point[] getPoints()
    {
        Point[] pts = new Point[getItemCount()];
        Enumeration enum = m_points.elements();
        for (int i = 0; enum.hasMoreElements(); i++)
        {
            pts[i] = (Point) enum.nextElement();
        }
        return pts;
    }

    /**
    *   Replaces the points in the list with the
    *   specified set.
    */
    public void setPoints(Point[] p)
    {
        removeAll();
        add(p);
    }

    /**
    *   Sets the specified point at the i-th entry
    *   in the list.
    */
    public void setPoint(int i, Point p)
    {
        replaceItem( getAsText(p), i );
        m_points.setElementAt(p, i);
    }

    /**
    *   Removes the specified point from the list,
    *   if found.
    */
    public void remove(Point p)
    {
        String name = getAsText(p);
        remove(name);
        m_points.removeElement(p);
    }

    /**
    *   Removes the point at the specified index.
    */
    public void remove(int i)
    {
        super.remove(i);
        m_points.removeElementAt(i);
    }

    /**
    *   Removes the selected point from the list,
    *   if there is a selected point.
    */
    public void removeSelectedPoint()
    {
        try
        {
            int index = getSelectedIndex();
            if (index != -1)
                remove(index);
        }
        catch(ArrayIndexOutOfBoundsException ex)
        {
        }
    }

    /**
    *   Removes all the points from the list
    */
    public void removeAll()
    {
        super.removeAll();
        m_points.removeAllElements();
    }

    /**
    *   Converts a Point into a standard text form
    */
    private static String getAsText(Point p)
    {
        String name = "{null}";
        if (p != null)
        {
            name = "(" + p.x + ", " + p.y + ")";
        }
        return name;
    }

    ///// Private data ////

    /**
    *   The points are actually stored in this Vector.
    *   Their text representation is stored in the List.
    */
    private Vector  m_points = new Vector();
}

package javaBeans;

import java.awt.Point;

import java.beans.BeanDescriptor;
import java.beans.PropertyEditorManager;
import java.beans.SimpleBeanInfo;

/**
*   BeanInfo class for SimpleScatterPlot.
*
*   @author Bryan J. Higgs, 10 April, 2000
*/
public class SimpleScatterPlotBeanInfo extends SimpleBeanInfo
{
    /**
    *   Gets the BeanDescriptor for the SimpleScatterPlot Bean.
    */
    public BeanDescriptor getBeanDescriptor()
    {
        // Register some property editors
        PropertyEditorManager.registerEditor(PlotType.class,
                                             PlotTypeEditor.class);

        PropertyEditorManager.registerEditor(PlotBounds.class,
                                             PlotBoundsEditor.class);

        PropertyEditorManager.registerEditor(Point[].class,
                                             PointsEditor.class);


        // Create bean descriptor
        BeanDescriptor desc = new BeanDescriptor(SimpleScatterPlot.class);
        desc.setShortDescription("Simple Scatter Plot");
        desc.setDisplayName("SimpleScatterPlot");

        return desc;
    }
}
